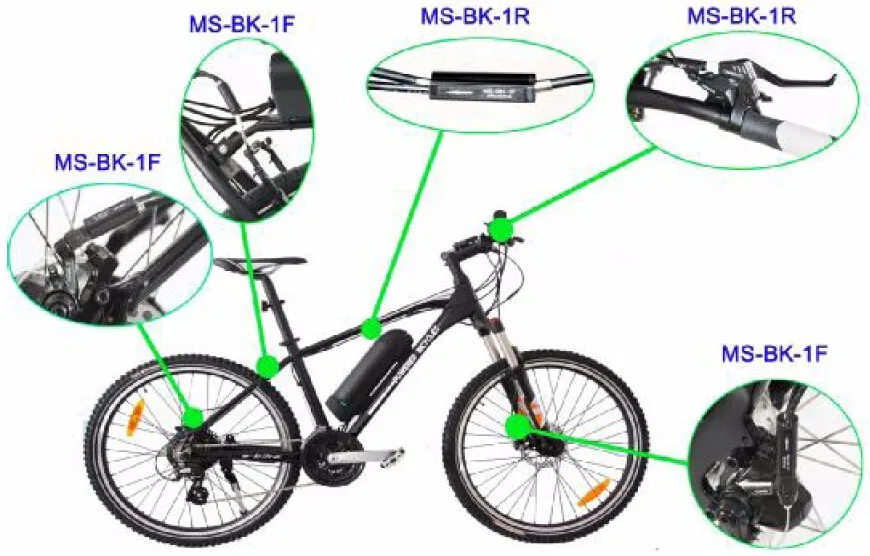

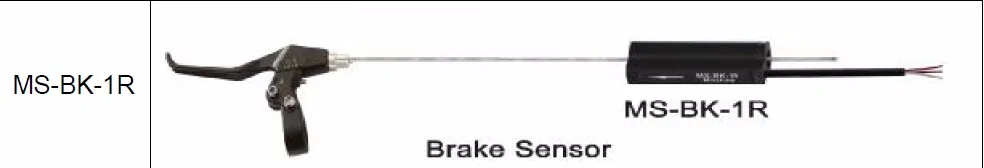

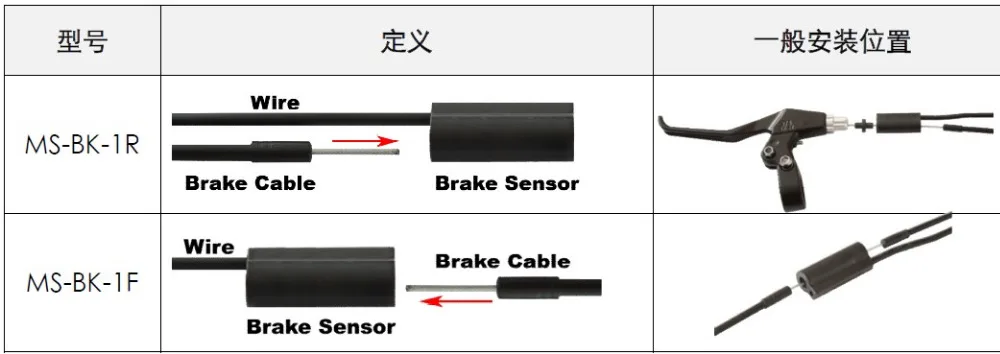

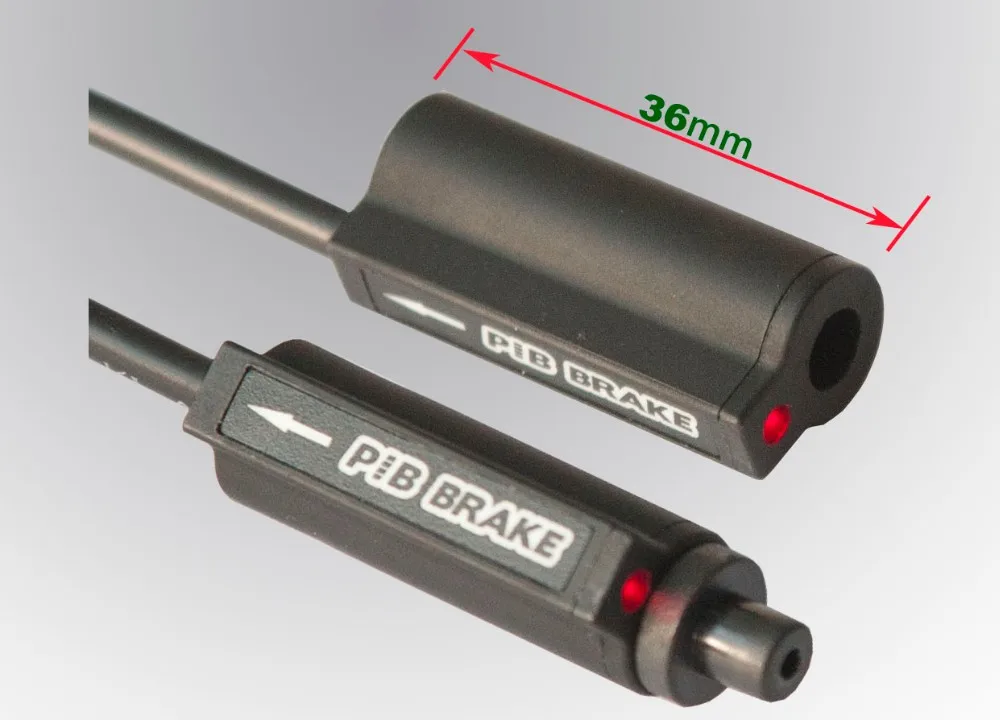

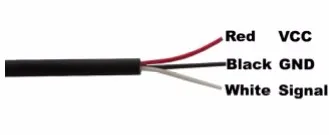

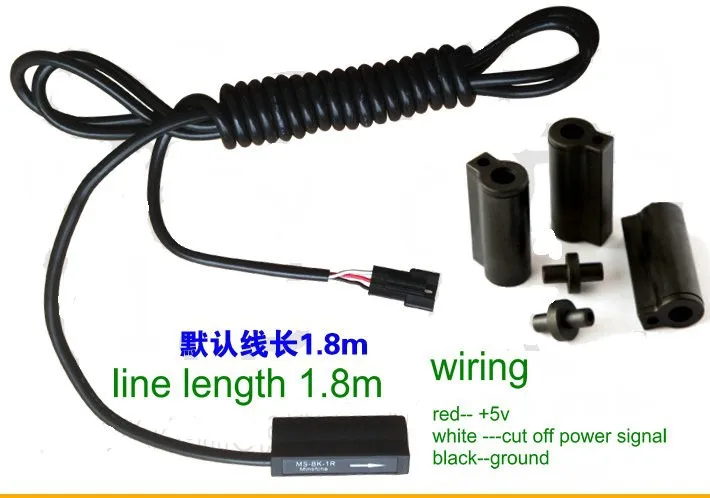

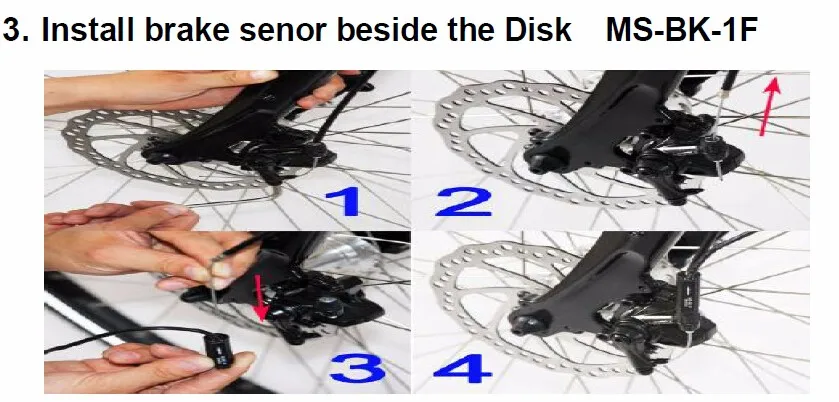

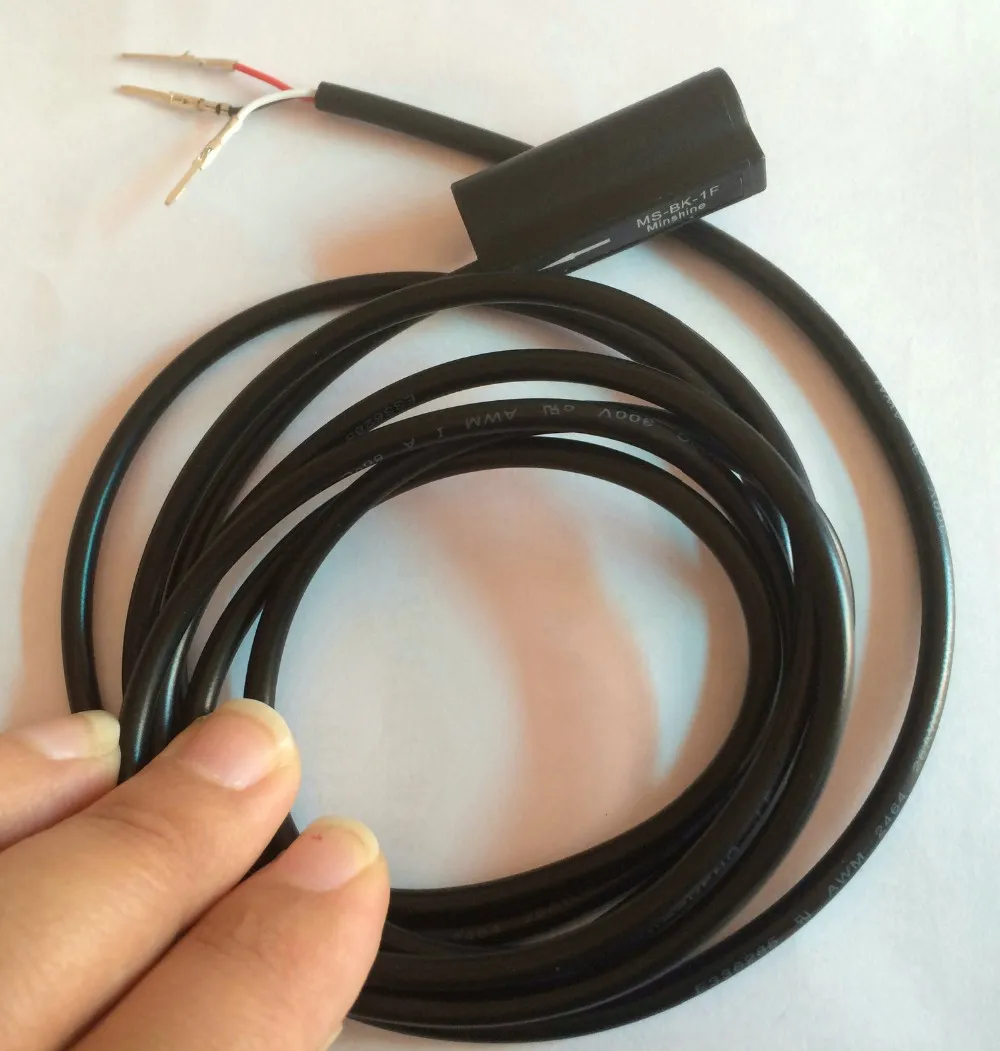

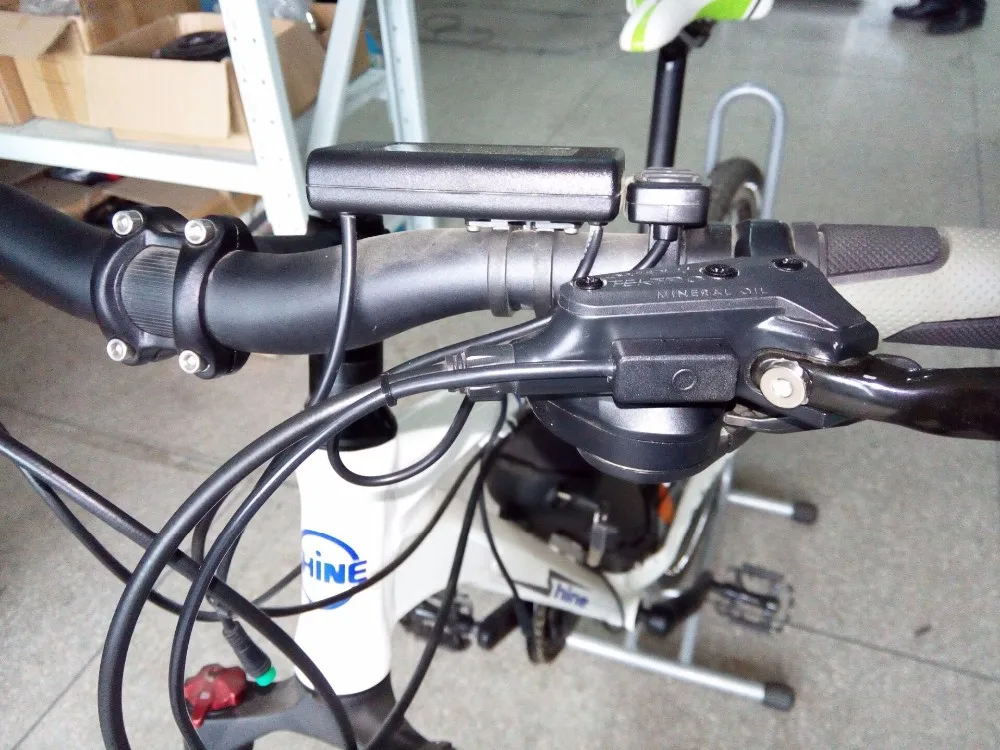

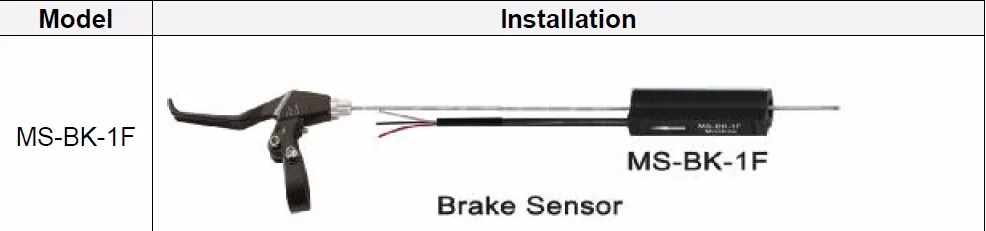

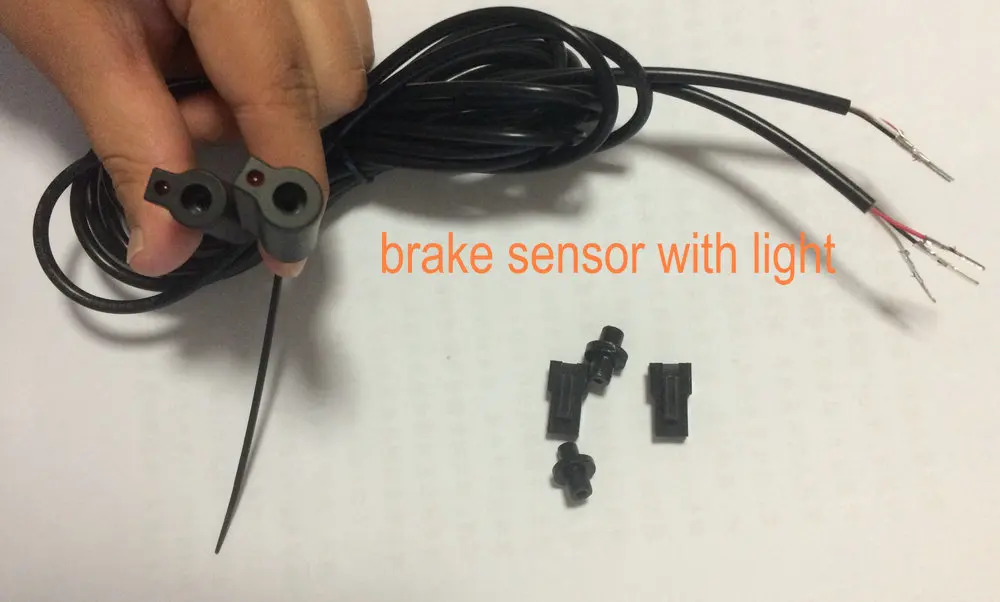

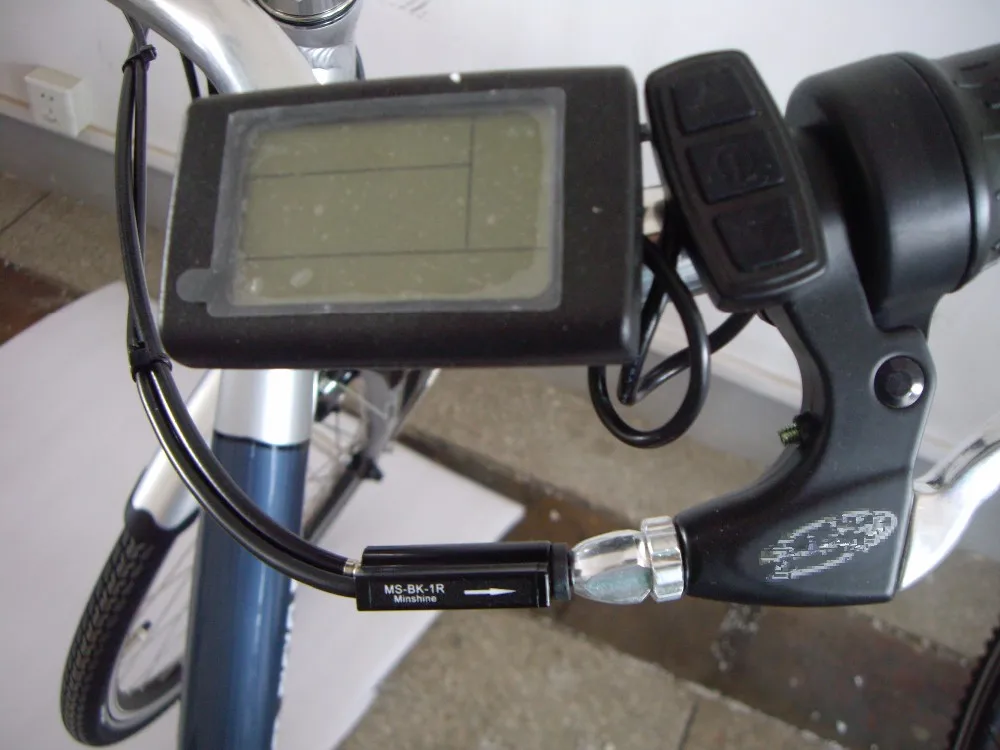

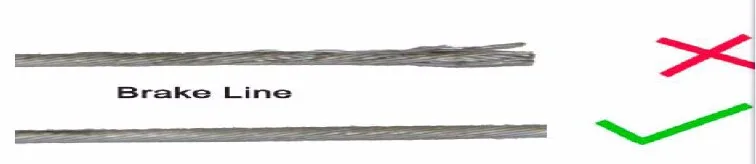

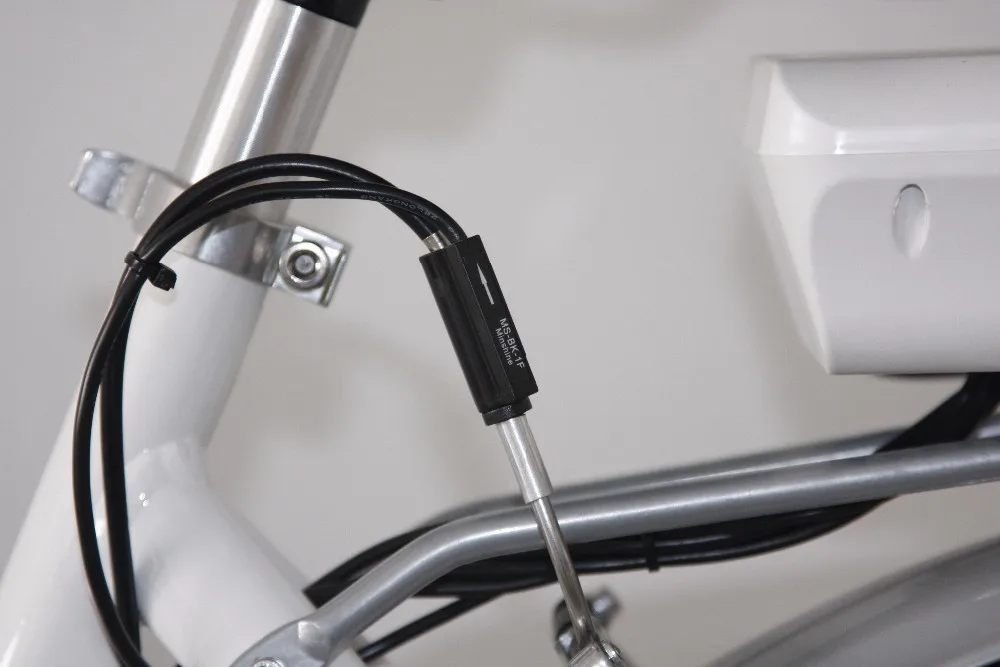

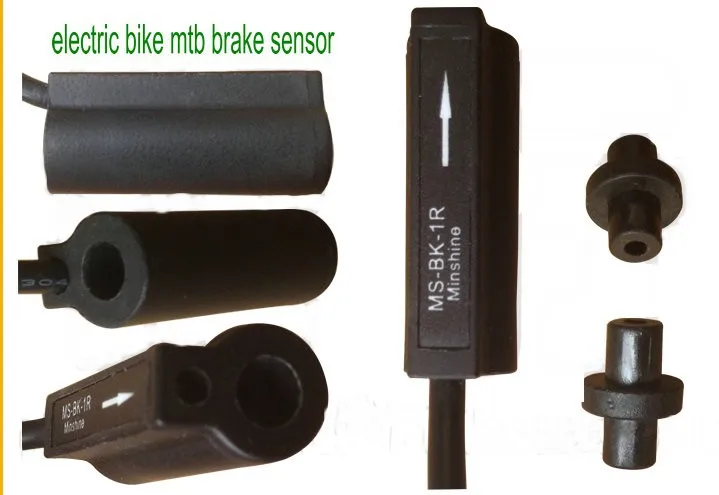

brake and cut off power signal sensor 1F/1R for electric bicycle scooter intelligent bike electric MTB for linear type of brake price of this link is for one piece of sensor, if need two , please order two, thanks v brake disc brake invisible brake -this one fit for controller brake line 3 wires work for v brake, disc brake, drum brake,Roller brake and many kinds of brake way . there are two models 1F --install on brake disc position 1R --INSTALL on handlebar position parameter VOLTAGE 5v-24v supply current 10mA , output current : max 20mA compatible brake cable 1.5mm-1.8mm indicator LED SIZE L*W*H: 36*12*16MM Cable type 3pin, 400mm or customized connector type: SM3 RED-VCC BLACK-GND WHITE-Signal it applys for any bike that has mechanical brake, and use brake line/cable. has two models you can choose from. see details INTRODUCTION FOR THIS SENSOR THE SERIALS ofBrake sensor is a new patented profucts that can install at any position of the brake cable. smaller size and better stability , suitable for all kind of E-Bikes.) 2. Before Install 1.Please distinguish the difference of brake sensor between Model:MS-BK-1R and Model:MS-BK-1F before mounting. MAINLY depends on the different movingdirection of brake lever and install position, check bellow for the different install location for 1F OR 1R. 1R--THE SENSOR IS AT REAR of brake wire 1F- the sensor is at front of brake wire 2.Make sure brake line is well, you can’t use a broken brake line through the brake sensor , see picture below. 3. SEE SAMPLE FINISHED an example from customer who connected it with hydraulic brake how to connector brake sensor with our controller connect red wire with +5v (connect with controller hall sensor wire or throttle wire, red wire) black/white with with low brake black white wire of controller, such as model c controller, for more parts please visitstore home https://www.aliexpress.com/store/2802219 pictures are for reference only seller preserve final right of explanation.
Rabu, 29 Januari 2020
brake and cut off power signal sensor 1F/1R for electric bicycle scooter intelligent bike electric MTB for linear type of brake
Global Version Xiaomi Mi A3 MiA3 4GB 128GB Mobile Phone 48MP + 32MP Camera Snapdragon 665 Octa Core 6.088" AMOLED Screen 4030mAh
ASUS Global Version Original ZenFone 4 ZE554KL 4+64G 5.5" FHD 3300mAh NFC Android mobile phone OTA Update
Global Version Xiaomi Mi A3 4GB 128GB Smartphone CC 9e Snapdragon 665 Octa Core 6.088" AMOLED Screen 48MP + 32MP Camera 4030mAh
Global Version Xiaomi Mi A3 128GB ROM 4GB RAM (Brand New and Sealed) mia3 128gb LATEST ARRIVAL
Brand New 5.2 inch 4GB 64GB Sony Xperia XZ1 G8341 Mobile Phone 4G LTE Snapdragon 835 Octa Core NFC 19MP 13MP NFC Original Phone
Global Version Xiaomi Mi A3 4GB 128GB 48MP Wide Triple Camera In-screen Fingerprint Sensor Andorid One* Empowered Mobile Phone
UMIDIGI X In-screen Fingerprint 6.35 AMOLED Display Global Version 48MP Triple Back Camera 128GB 4GB Helio P60 4150mAh Cellphone
New Global Version Xiaomi Mi A3 MiA3 4GB 128GB Smartphone Snapdragon 665 48MP Triple Camera 32MP Front Camera 6.088" AMOLED
Global Version Xiaomi Mi A3 128GB ROM 4GB RAM (Official) mia3128gb
Original HONOR 20i honor 20 i Mobile Phone honor 20 lite 6.21 inch Kirin 710 Octa Core Android 9.0 Face Fingerprint Unlock
Global ROM Xiaomi Redmi Note 8 6GB 64GB Smartphone Snapdragon 665 Octa Core 48MP Quad Rear Camera 6.3" AMOLED Screen 4000mAh
Global Version Xiaomi Redmi Note 8 4GB RAM 128GB ROM Mobile Phone Snapdragon 665 Octa Core 48MP Quad Rear Camera 6.3” 4000mAh
In Stock Global Version Xiaomi Redmi 8 4GB 64GB Snapdragon 439 Octa Core 12MP Dual Camera Mobile Phone 5000mAh Large Battery OTA
Lenovo Z6 Lite 6.3'' 4GB 64GB Smartphone Octa Core Triple Back Cams 19.5:9 Waterdrop 4050mAh 4G LTE OTA Mobile Phone
Brand New Honor 7x 4G LTE Mobile Phone 5.93" 4GB RAM 128GB ROM Kirin 659 Octa Core Android 7.0 3340mAh 16.0MP+2.0MP Camera Phone
Original cell phone Samsung Galaxy S3 I9300 Quad-core 4.8inch Android Smart Phone Samsung i9300 Free Shipping
Original HuaWei Mate S 4G LTE Mobile Phone Kirin 935 Android 5.1 5.5" 1920X1080 3GB RAM 64GB ROM 13.0MP Fingerprint
Samsung Galaxy S6 edge G925F Original 4G LTE Android Mobile Phone Octa Core 5.1" 16MP 3GB RAM 32GB ROM Fingerprint NFC
Original HuaWei P9 Plus 4G LTE Mobile Phone Kirin 955 Android 6.0 5.5" FHD 4GB RAM 128GB ROM 12.0MP Fingerprint Force Touch
100% Original Unlocked Motorola Droid Maxx 2 XT1565 Mobile Phone Andriod 5.5"Touch screen 16GB Rom 2GB Ram Quad-core cell phone
Original Unlocked BlackBerry Z30 4G phone 5.0"Capacitive touchscreen,8MP BlackBerry OS 16GB ROM
Original Letv LeEco Le 2 Pro X625 Helio X25 CPU 4GB RAM 32GB ROM 4G LTE Mobile Phone Android 6.0 5.5" FHD 21.0MP Fingrprint ID
JEASUNG D6 Rugged Phone IP68 Octa Core Android 6.0 Waterproof 4G LTE Shockproof 4G RAM 64G ROM 13MP NFC Fingerprint Magnetic OEM
JEASUNG D6 Waterproof Phone IP68 4G Shockproof Phone 4G RAM 64GB ROM Smartphone NFC PTT IP67 Fingerprint Magnetic Charge X1 S30
Original Letv Le MAX 2 X829 6GB RAM 64GB ROM International Version Mobile Phone 4G LTE Snapdragon 820 Quad Core Fingerprint ID
original Blackview BV7000 Pro Smartphone 4G Waterproof IP68 5.0"FHD MT6750T Octa Core Android 6.0 4GB+64GB 13MP Mobile Phone
HTC One A9 Unlocked 4G LTE Mobile Phone 2G/3G RAM 16/32GB ROM Quad-core Android 5.0" 13MP HTC A9 Fingerprint 2150mAh
Brand Name
phoebevpartstols
Type
Cut Off Power Brake
brake and cut off power signal sensor 1F/1R for electric bicycle scooter intelligent bike electric MTB for linear type of brake price of this link is for one piece of sensor, if need two , please order two, thanks v brake disc brake invisible brake -this one fit for controller brake line 3 wires work for v brake, disc brake, drum brake,Roller brake and many kinds of brake way . there are two models 1F --install on brake disc position 1R --INSTALL on handlebar position parameter VOLTAGE 5v-24v supply current 10mA , output current : max 20mA compatible brake cable 1.5mm-1.8mm indicator LED SIZE L*W*H: 36*12*16MM Cable type 3pin, 400mm or customized connector type: SM3 RED-VCC BLACK-GND WHITE-Signal it applys for any bike that has mechanical brake, and use brake line/cable. has two models you can choose from. see details INTRODUCTION FOR THIS SENSOR THE SERIALS ofBrake sensor is a new patented profucts that can install at any position of the brake cable. smaller size and better stability , suitable for all kind of E-Bikes.) 2. Before Install 1.Please distinguish the difference of brake sensor between Model:MS-BK-1R and Model:MS-BK-1F before mounting. MAINLY depends on the different movingdirection of brake lever and install position, check bellow for the different install location for 1F OR 1R. 1R--THE SENSOR IS AT REAR of brake wire 1F- the sensor is at front of brake wire 2.Make sure brake line is well, you can’t use a broken brake line through the brake sensor , see picture below. 3. SEE SAMPLE FINISHED an example from customer who connected it with hydraulic brake how to connector brake sensor with our controller connect red wire with +5v (connect with controller hall sensor wire or throttle wire, red wire) black/white with with low brake black white wire of controller, such as model c controller, for more parts please visitstore home https://www.aliexpress.com/store/2802219 pictures are for reference only seller preserve final right of explanation.
brake and cut off power signal sensor 1F/1R for electric bicycle scooter intelligent bike electric MTB for linear type of brake price of this link is for one piece of sensor, if need two , please order two, thanks v brake disc brake invisible brake -this one fit for controller brake line 3 wires work for v brake, disc brake, drum brake,Roller brake and many kinds of brake way . there are two models 1F --install on brake disc position 1R --INSTALL on handlebar position parameter VOLTAGE 5v-24v supply current 10mA , output current : max 20mA compatible brake cable 1.5mm-1.8mm indicator LED SIZE L*W*H: 36*12*16MM Cable type 3pin, 400mm or customized connector type: SM3 RED-VCC BLACK-GND WHITE-Signal it applys for any bike that has mechanical brake, and use brake line/cable. has two models you can choose from. see details INTRODUCTION FOR THIS SENSOR THE SERIALS ofBrake sensor is a new patented profucts that can install at any position of the brake cable. smaller size and better stability , suitable for all kind of E-Bikes.) 2. Before Install 1.Please distinguish the difference of brake sensor between Model:MS-BK-1R and Model:MS-BK-1F before mounting. MAINLY depends on the different movingdirection of brake lever and install position, check bellow for the different install location for 1F OR 1R. 1R--THE SENSOR IS AT REAR of brake wire 1F- the sensor is at front of brake wire 2.Make sure brake line is well, you can’t use a broken brake line through the brake sensor , see picture below. 3. SEE SAMPLE FINISHED an example from customer who connected it with hydraulic brake how to connector brake sensor with our controller connect red wire with +5v (connect with controller hall sensor wire or throttle wire, red wire) black/white with with low brake black white wire of controller, such as model c controller, for more parts please visitstore home https://www.aliexpress.com/store/2802219 pictures are for reference only seller preserve final right of explanation.
